The Logic Frame clock

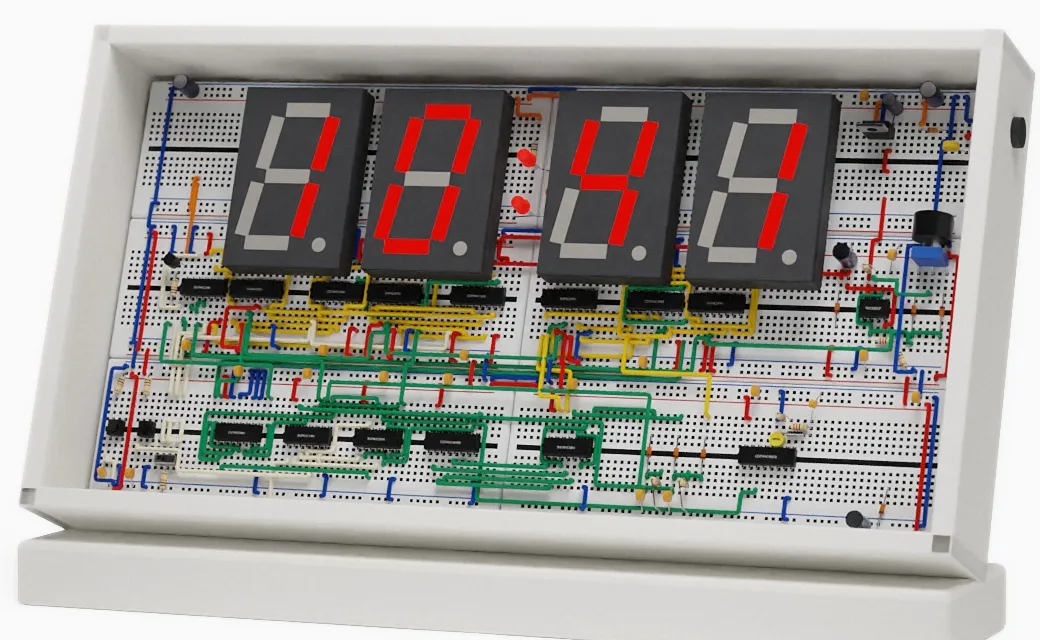

A digital clock with big red digits, counted by logic chips on breadboards, with every connection a hand-bent wire. No microcontroller.
Status: designed, and the circuit checks out in simulation. The pictures here are renders.
Get an email when something real happens with it.
A short welcome, then build updates on the Logic Frame clock when something real happens (about two emails a month at most). If it ever goes on sale, the list hears first. Joining doesn't buy or reserve anything. Unsubscribe anytime. You'll get one email to confirm first. Details
Render
What it is
- The idea. Most clocks hide a chip that does the counting. This one shows it: the counting is done by 74-series logic chips, and you can see every wire between them.
- The digits. Four 2.3 inch red digits, big enough to read across a room, driven by LS47 decoder chips.
- The wires. Around 260 jumper wires, bent by hand, on a few breadboards in a white frame.
- Where it stands. I've designed it and checked the circuit in simulation. I'm not making any claims past that on this page. When that changes, the list is where I'll say so.
